NZ 3604 Retaining Walls: Rules, Height Limits & Tips

Welcome to your go-to guide for understanding NZ 3604 retaining walls. Whether you’re planning a backyard upgrade, tackling a DIY project, or simply curious about the rules, this post breaks down what you need to know in plain language. NZS 3604 is the standard that outlines when and how you can build retaining walls without needing an engineer, and getting it right can save you time, money, and future headaches. We’ll walk you through the basics, explain when professional help is required, and highlight key mistakes to avoid—so you can build with confidence and stay compliant with New Zealand regulations.

NZ 3604 is a New Zealand building standard that allows retaining walls up to 1.5 meters high to be built without engineering input, as long as specific conditions are met. These include stable soil, no nearby loads (like driveways or buildings), and proper drainage. It’s commonly used for small residential projects and helps simplify the consent process when guidelines are followed correctly.

What Is NZS 3604?

NZS 3604 is a building standard used across New Zealand for the construction of light timber-framed buildings. It provides a set of rules and guidelines that builders, designers, and homeowners can follow to design and build safe, low-rise residential structures, without needing input from a structural engineer in many cases.

This standard is widely used because it simplifies the building process. Instead of having to get every detail of a home or structure custom-designed by professionals, NZS 3604 offers pre-approved solutions for common building situations. This includes everything from framing and foundations to bracing and, importantly, retaining walls.

The main purpose of NZS 3604 is to ensure that buildings are structurally sound and safe for everyday use. It’s designed for timber-framed buildings up to two stories high (plus a roof), and covers various site conditions, materials, and construction methods suitable for most parts of the country. It also ensures buildings can withstand common environmental loads such as wind, earthquakes, and ground conditions typical in New Zealand.

When it comes to retaining walls, NZS 3604 provides clear guidelines for building walls up to a certain height (usually 1.5 meters) without needing a custom-engineered solution. This makes it easier and more affordable for homeowners and builders to complete small-scale retaining projects.

Because it removes the need for professional engineering in standard cases, NZS 3604 is often referred to as a “non-engineered” building standard. That doesn’t mean the construction is low-quality—it means it’s already been tested and approved for safety when the conditions match what the standard allows.

For those who want to explore the full technical details, the NZS 3604 standard can be purchased through Standards New Zealand. This is the official source for the most up-to-date version of the document.

How NZS 3604 Applies To Retaining Walls

NZS 3604 is a well-known standard in New Zealand that guides the construction of timber-framed buildings. It also sets specific rules for certain types of retaining walls. These rules are designed to help builders, homeowners, and DIYers complete safe and compliant projects without needing a professional engineer, but only under strict conditions.

Understanding how NZS 3604 applies to retaining walls is essential if you want to avoid delays, costly mistakes, or legal issues with your local council. Here’s what you need to know.

Types Of Retaining Walls Covered By NZS 3604

NZS 3604 applies mainly to timber pole retaining walls used in residential construction. These are usually:

• Cantilevered timber pole walls
• Gravity timber walls (in limited cases)
• Walls not exceeding specific load and height limits
• Freestanding walls, not part of a larger structural system

These types are considered non-engineered and can be built without professional design input, as long as they meet the conditions listed in the standard.

Maximum Height Limit Under NZS 3604

The maximum allowable height for a retaining wall under NZS 3604 is 1.5 metres. This is the absolute limit for walls that do not need an engineer or a building consent, provided that all other requirements (like loads and soil type) are also met.

If your wall exceeds 1.5 metres in height, you must consult a structural engineer and likely apply for council consent.

Important Considerations: Soil, Drainage, And Loads

Even if your wall is under 1.5 metres, several other conditions must be met for it to qualify under NZS 3604:

• Soil Type: The soil must be stable, granular, and free-draining. Expansive or soft clay soils are not suitable.
• Drainage: Adequate drainage behind the wall is required to prevent hydrostatic pressure. This usually includes scoria backfill and a perforated drainage pipe.
• Surcharge (Load): There must be no surcharge above the wall. That means no driveways, buildings, heavy landscaping, or parked vehicles within a certain distance of the top of the wall.

If any of these conditions aren’t met, the wall falls outside NZS 3604 and will need professional design.

When A Structural Engineer Is Required

Here are the situations where you must involve a licensed engineer:

• The wall is higher than 1.5 metres
• The wall supports additional loads (driveways, footpaths, structures)
• The site has poor or unstable soil
• The retaining wall is part of a sloped site with a risk of movement
• You are building multiple retaining walls in close proximity

An engineer will design a wall that suits the specific site conditions and meets building code standards. This step is not optional if your wall doesn’t comply with NZS 3604.

Quick Reference Checklist

Use this simple checklist to determine if your retaining wall can be built under NZS 3604:

• Wall height is 1.5m or less
• Soil is free-draining and stable
• No surcharge or nearby loads
• Adequate drainage system included
• Timber meets treatment requirements (e.g., H5 for posts)
• Not part of a retaining wall series or tiered structure

If you tick all the boxes above, you may proceed without engineering input. If not, consult a qualified professional.

This section helps you understand where NZS 3604 stops and where a structural engineer needs to step in. Following these guidelines ensures your retaining wall is safe, legal, and built to last.

When You Can Build A Retaining Wall Without An Engineer

Not every retaining wall project needs a structural engineer. Under NZS 3604, there are specific conditions where you can build a retaining wall on your property without professional design or council consent. These rules are designed to keep things simple and safe for small residential projects, especially for homeowners and DIY builders.

Here’s what you need to know before you start.

Wall Height Must Be Under 1.5 Meters

If your retaining wall is 1.5 meters or lower, you generally don’t need an engineer. This height is measured from the bottom of the wall’s foundation to the highest point of the retained soil. Anything taller increases soil pressure and risk, which is why taller walls always require engineering input and council approval.

No Surcharge Behind The Wall

“Surcharge” refers to any added weight or load near the top of the wall. This can include:

• A driveway
• A parked vehicle
• A building or structure
• A water tank
• A pool or spa

If any of these are located too close to the wall, they create extra pressure that a standard design under NZS 3604 can’t safely handle. In these cases, you’ll need a structural engineer to design a custom solution.

Adequate Drainage Is Essential

Poor drainage is one of the most common reasons retaining walls fail. Even if the wall is short, water buildup behind it adds pressure and can weaken the structure over time. NZS 3604 requires that your wall includes:

• Drainage coil (also called ag pipe) at the base
• Scoria or gravel backfill
• Free-draining soil
• A way for water to escape (weep holes or outlet pipes)

Getting this part right is crucial—without it, your wall could shift, rot, or collapse.

The Soil Must Be Stable

Soil conditions vary widely across New Zealand. NZS 3604 assumes that you’re building on firm, stable, well-drained soil. If your site has:

• Expansive clay
• Loose fill
• Sandy or collapsing soil
• Signs of water runoff or erosion

…then a geotechnical report or engineering advice is strongly recommended. Building on unstable ground without proper assessment can lead to dangerous outcomes and expensive repairs.

Always Check With Your Local Council

While NZS 3604 sets the national standard, local councils may have their own variations or requirements. Some councils are stricter due to regional hazards like earthquakes, landslides, or high rainfall. Before starting your project:

• Visit your council’s website
• Speak with a building officer
• Confirm whether your wall qualifies for exemption

This step helps avoid delays, penalties, or orders to rebuild.

Bottom Line

If your retaining wall is:

• No higher than 1.5m
• Not holding back extra loads
• Designed with good drainage
• Built on solid, stable ground

…then you may not need an engineer or consent. Still, it’s always smart to double-check with your local council before you dig. Getting clarity upfront will save you time, money, and potential issues down the line.

Key Design Requirements Under NZS 3604

When building a retaining wall under NZS 3604, following the correct design requirements is critical. These rules ensure the wall stays stable, safe, and legally compliant. Below are the main areas you need to understand, written clearly for everyday builders, homeowners, and DIYers.

Timber Specifications

NZS 3604 sets clear expectations for the type of timber used in retaining walls. The right treatment level is essential to prevent decay from soil moisture and weather exposure.

• H5 Treated Timber for Posts: Posts must be treated to H5 level, which makes them suitable for direct ground contact and long-term durability. This protects against fungal decay and insect attack.
• H4 Treated Timber for Rails and Sleepers: These parts don’t go as deep into the ground, but still require strong resistance to moisture.

Using the correct timber grade isn’t optional—it directly affects the wall’s lifespan and safety. Always check for compliance stamps on timber products before using them.

Post Spacing And Embedment Depth

Proper post placement ensures the wall can resist soil pressure. Under NZS 3604, spacing and depth depend on wall height and the type of soil on-site.

• Typical Post Spacing: Usually between 1.2 to 1.5 meters, but may vary depending on the load and wall design.
• Embedment Depth: Posts should be embedded at least one-third of the wall height into the ground, plus 100 mm for gravel at the base. For example, a 1.2m high wall would need a post depth of around 500mm–600mm.

The deeper the embedment, the more secure the wall, especially in areas with wind, rain, or unstable soil.

Backfill And Drainage Rules

Ignoring drainage is one of the biggest causes of retaining wall failure. NZS 3604 requires proper drainage behind the wall to prevent water buildup and pressure on the structure.

Here’s what to include:

• Drainage Coil: A 100mm perforated pipe laid at the wall base, running to a free-draining outlet.
• Scoria or Crushed Stone Backfill: Fill the space behind the wall with free-draining material. This allows water to reach the coil quickly.
• Geotextile Fabric: Place a fabric layer between the soil and gravel to prevent silt from clogging the drainage.
• Weepholes or Outlets: Small holes spaced evenly to let water escape through the wall if needed.

Skipping these drainage steps can lead to bulging walls, timber rot, and costly repairs.

Common Construction Methods: Cantilever Vs. Gravity Walls

NZS 3604 supports two common types of timber retaining walls: cantilever and gravity. Knowing the difference helps you choose the right approach for your site.

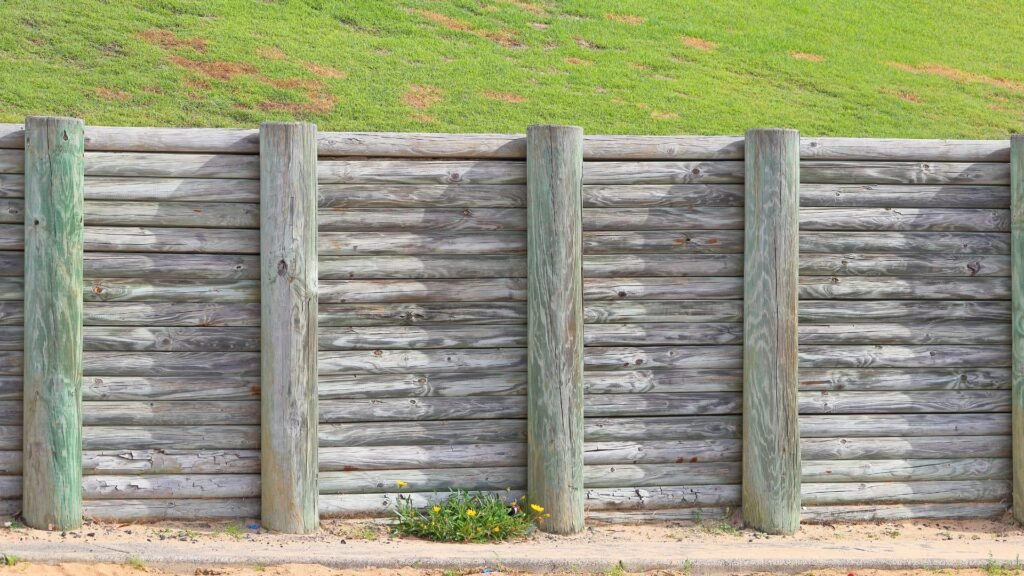

• Cantilever Walls: These are supported by vertical posts embedded in the ground. The soil pressure is countered by the strength and depth of the posts. This method is suitable for heights up to 1.5m under the standard.

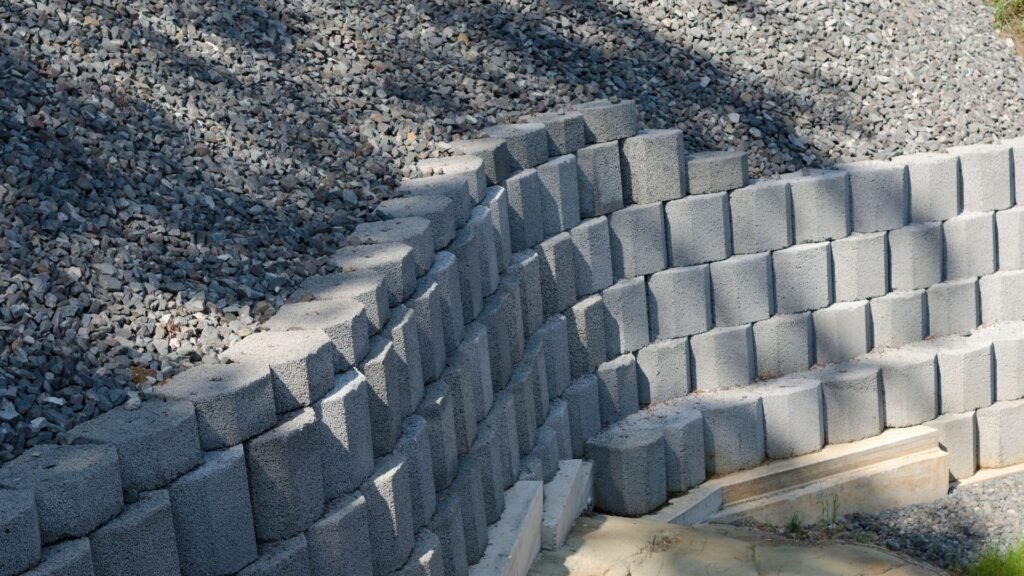

• Gravity Walls: These rely on their own mass to resist soil pressure, often using large timber or concrete blocks. While not as common under NZS 3604, they may be used in certain cases with adequate backfill and stability.

Each method has pros and cons depending on soil type, wall height, and drainage needs.

Use Visuals For Clarity

To make these rules easier to understand, it helps to include:

• Simple tables showing post spacing vs. wall height
• Diagrams of cantilever vs. gravity wall structures
• Cross-section views of proper drainage setup

These can make technical content easier to digest and reduce mistakes during construction. If you’re publishing this content online, include labeled illustrations or downloadable PDFs for added user value.

Following these key design requirements will help you build a retaining wall that meets NZS 3604, performs well, and lasts for years. Always double-check your plans against the standard and consult your local council if you’re unsure.

Building Consent And Council Considerations

If you’re planning to build a retaining wall in New Zealand, understanding when building consent is required is crucial. Under the NZS 3604 standard, not all retaining walls need consent, but many do, depending on the size, location, and surrounding load. Getting this wrong can lead to serious consequences, including fines, removal notices, or costly repairs. This section will help you stay compliant and avoid common pitfalls.

When You Need To Apply For Consent

In general, a retaining wall requires building consent if:

• It is over 1.5 meters high, regardless of material
• It supports a surcharge, such as a driveway, building, car, or slope
• It is part of a larger construction project (like a fence over 2.5 meters combined height)
• The wall is near a boundary or public land

Even if your wall is under 1.5 meters, you may still need consent if site conditions are complex or if it’s in a flood-prone or unstable area. It’s always safer to check with your local council before starting work.

Common Documentation Required

When applying for building consent, most councils will ask for the following documents:

• Detailed plans of the retaining wall design
• Site plan showing the wall’s location relative to boundaries and buildings
• Engineer’s report (if required)
• Drainage plan to show how water will be managed
• Construction details, including materials and timber treatment
• Owner’s declaration or proof of property ownership

Submitting accurate and complete documents helps speed up the approval process and reduces the chances of rejection or delays.

Regional Differences Across Councils

Requirements can vary across regions. For example:

• Auckland Council may have stricter controls in flood zones or sloped areas, and often requires geotechnical reports for anything over 1.5 meters.
• Wellington City Council places strong emphasis on seismic considerations due to its earthquake-prone nature.
• Christchurch City Council may have special requirements related to land affected by liquefaction or past seismic events.

Always consult the specific council website or contact their building team directly to confirm local rules. What’s acceptable in one area might need extra steps in another.

How To Stay Compliant And Avoid Fines

To avoid fines and future issues:

• Don’t start building without checking consent rules
• Always build to NZS 3604 standards when no engineering is involved
• Hire qualified professionals if the project exceeds basic guidelines
• Document everything, including photos of construction stages
• Schedule inspections if your project requires council sign-off

Failing to get consent for a wall that needs it can result in a “notice to fix,” penalties, or forced demolition. Council officers may inspect the site if complaints are made or during routine property reviews.

By following these steps and confirming the rules with your local council, you can build a safe, legal retaining wall that meets both NZS 3604 and council requirements. Always take a cautious approach—getting it right the first time will save time, money, and stress.

Common Mistakes To Avoid When Building NZ 3604 Retaining Walls

If you’re planning to build a retaining wall under NZS 3604, getting the basics right isn’t enough. Small oversights can lead to big issues—structural damage, council fines, or having to rebuild the entire wall. Here are four of the most common mistakes people make, and how to avoid them.

Building Too Close To Boundaries

Many homeowners assume they can build right up to their boundary line. But this can cause legal and structural problems. Councils often require minimum setbacks, especially if your wall affects drainage or neighboring properties.

Why it matters:

• Your wall could interfere with your neighbor’s land or future development.
• Council consent may be required for boundary walls, even if the height is under 1.5 meters.
• Limited space affects drainage options and wall stability.

Tip: Always check local rules and leave enough room behind the wall for proper backfill and drainage.

Ignoring Water Drainage

Poor drainage is one of the leading causes of retaining wall failure. Without it, water builds up behind the wall, adding pressure that timber or concrete can’t handle long-term.

Why it matters:

• Waterlogging weakens soil and increases hydrostatic pressure.
• Drainage failures often lead to bowing, cracking, or collapse.
• Moisture buildup shortens the life of timber and accelerates rot.

Tip: Use a perforated drainage pipe (like Novaflo), backfill with scoria or gravel, and wrap the backfill in geotextile fabric to prevent blockages.

Using Untreated Timber

Timber in contact with soil and moisture must be properly treated. Using the wrong type—or worse, untreated timber—can lead to decay, pest infestation, and a wall that fails within a few years.

Why it matters:

• Timber below ground level should be H5 treated.
• Sleepers and rails above ground should be H4.
• Using the wrong grade may breach NZ building standards and void your warranty.

Tip: Only buy timber that’s clearly labeled with its treatment grade and check it’s approved for retaining wall use.

Underestimating Soil Pressure

Even a short wall must hold back tonnes of soil. Many DIY builders overlook how heavy wet soil can be, especially on sloped sites or during rainfall.

Why it matters:

• Soil pressure increases significantly with depth.
• Without proper embedment and spacing, posts may tilt or snap.
• Loose or sandy soils need extra support and bracing.

Tip: Stick to NZS 3604 specs for post spacing and embedment depth. If you’re unsure about soil type or stability, get advice from a geotechnical expert.

Quick Reference List: Mistakes To Avoid

• Don’t build too close to your boundary without checking the council rules.
• Always install proper drainage behind the wall.
• Never use untreated or incorrectly treated timber.
• Don’t assume soil pressure is minor—plan for worst-case loads.

Avoiding these common errors not only keeps your wall compliant with NZS 3604—it helps you build something safe, durable, and long-lasting. Always double-check your design before digging, and don’t hesitate to ask a professional if anything’s unclear.

Tips For A Safe And Long-Lasting Retaining Wall

Building a retaining wall isn’t just about stacking timber or pouring concrete. If you want your wall to last—and stay safe—it needs to be built with care, checked over time, and maintained properly. Here are four practical tips that can help extend the life of your retaining wall and reduce the risk of failure.

Always Use Proper Drainage

Water buildup behind a retaining wall is one of the most common causes of failure. Without proper drainage, hydrostatic pressure builds up, pushing the wall outward or causing it to collapse. That’s why drainage isn’t optional—it’s essential.

Use a perforated drainage coil (also called a drain coil or ag pipe) at the base of the wall to carry water away. Surround it with free-draining material like scoria or crushed rock to allow water to move freely. Line the back of the wall with a geotextile fabric to keep soil from clogging the system. These materials are easy to source and make a big difference in how the wall performs over time.

Regular Inspections For Movement Or Rot

A well-built wall can still fail if it’s ignored for years. Regular inspections help you catch early signs of trouble, like leaning, bulging, or rotten timber, before they turn into serious structural issues.

Walk along your wall every few months, especially after heavy rain. Check for cracks, loose posts, gaps forming behind the wall, or soft wood. If something feels unstable or looks off, it’s better to fix it early than wait for it to worsen.

Protect Timber From UV Damage

Timber retaining walls are common in residential projects, but they’re vulnerable to sunlight. UV exposure breaks down the timber’s surface over time, causing it to crack, fade, and eventually rot.

To protect your wall:

• Use treated timber rated for ground contact (at least H5 for posts).
• Apply a UV-resistant stain or sealant once a year to exposed surfaces.
• Consider adding a protective cap or trim along the top edge to shield it from direct sun.

This simple maintenance step helps your wall stay strong and look good longer.

Consider Landscaping For Support

Good landscaping can work with your wall, not against it. Planting the right vegetation helps reduce soil erosion, improves water absorption, and even adds lateral support over time.

Choose low-maintenance, deep-rooted plants like native grasses, ground covers, or shrubs. Avoid trees with aggressive roots near the wall, as they can push against the structure or damage drainage systems.

Mulch and surface cover also help manage water flow, reducing runoff and keeping soil in place. This not only supports the wall but also improves the overall appearance of your outdoor space.

Following these tips can help ensure your retaining wall meets NZ 3604 standards and stands the test of time. Whether you’re building from scratch or maintaining an existing wall, it pays to do it right from the start. A well-built wall won’t just hold back soil—it will protect your property, enhance your landscape, and save you from costly repairs down the line.

When To Call A Professional

Building a retaining wall may seem like a manageable task, especially with clear guidelines from NZS 3604. But there are situations where professional help isn’t just recommended—it’s necessary. Ignoring these warning signs can lead to costly repairs, structural failure, or even legal trouble. Here’s when you should step back and bring in an expert.

Surcharges Or Loads Near The Wall

If you plan to build a retaining wall near a driveway, fence, building, or any other heavy structure, you’re dealing with what’s called a “surcharge.” These added loads increase the pressure behind the wall and change the way the structure must be designed. NZS 3604 doesn’t cover walls exposed to surcharges. Trying to build one without professional guidance can compromise the wall’s safety and lead to failure. An engineer will assess the extra load and design the wall to handle the pressure correctly.

Wall Height Exceeds 1.5 Meters

NZS 3604 only applies to retaining walls up to 1.5 meters tall. Once your wall exceeds this height, the soil pressure increases significantly. These higher walls require engineering input to ensure they stay stable under stress. Attempting to build a taller wall without professional plans can be dangerous and usually requires a building consent from your local council. A qualified engineer can provide a safe design, including deeper posts, stronger materials, and proper anchoring systems.

Sloped Or Unstable Land

Building on sloped ground or loose soil conditions adds risk. Water runoff, erosion, and shifting soil can all affect the stability of your wall. These conditions fall outside the standard scope of NZS 3604, and even a wall under 1.5 meters can fail if the ground isn’t stable. A geotechnical engineer can analyze the soil type, drainage patterns, and slope to recommend a design that won’t move over time.

Signs Of Structural Movement

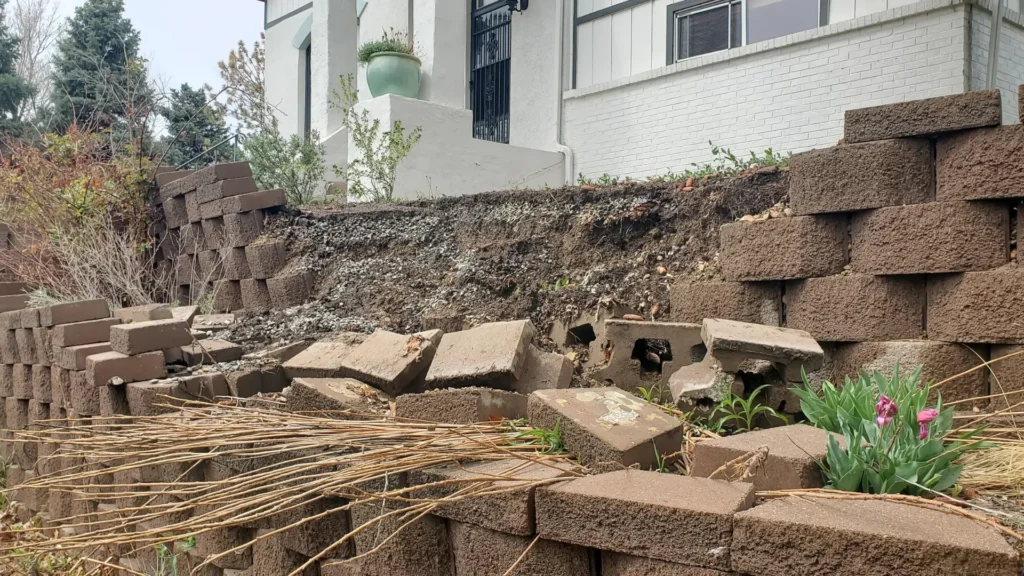

Cracks, leaning posts, bulging boards, or pooling water behind the wall are signs that something’s wrong. These issues may seem small at first but can quickly lead to total failure if ignored. Whether the wall was built under NZS 3604 or engineered, movement indicates a problem that needs expert assessment. A structural engineer can inspect the damage and suggest reinforcement, repair, or rebuild options that prevent future failure.

Calling a professional at the right time doesn’t mean giving up control—it means protecting your property and avoiding long-term problems. If your project involves any of these conditions, getting expert advice ensures the retaining wall will be safe, legal, and built to last.

Need help with your retaining wall project? Visit our website to get expert advice, simple guides, and support for building safe, compliant walls under NZS 3604.

FAQs: About NZ 3604 Retaining Walls

Conclusion

Understanding NZS 3604 is more than just knowing the rules—it’s about making safe, informed decisions when building retaining walls on your property. This standard offers clear guidance for non-engineered walls, helping homeowners and builders avoid costly mistakes while staying compliant with local regulations. By following NZS 3604, you reduce the risk of structural failure, water damage, or fines, and ensure your wall stands the test of time. Whether you’re starting a DIY project or planning a larger build, taking the time to read the standard, talk to your local council, or seek a professional consultation can save you stress down the line. If the NZS 3604 document is available to you, download a copy and review the key sections that apply to your site. Doing so gives you peace of mind, knowing that your project is both compliant and built to last.
